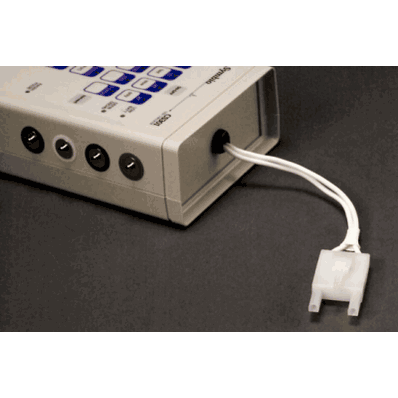

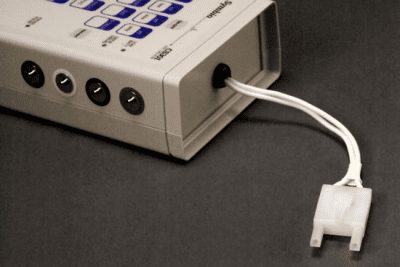

Arrhythmia Simulator Symbio for Zoll

Features

• With the Symbio Code 12 Simulator you can simulate electrical capture with your external pacer. Press the simulator capture key to select one of four pre-set pacing capture levels: 70, 80, 90, or 100mA. When the pacer current is greater than the selected capture level, paced beats appear on your monitor.
• Waveforms for pacing include: Sinus Brady (two), 1st degree A-V block, 2nd degree type I A-V block, 2nd degree type II A-V block, 2nd degree type II A-V block with PVCs, and 3rd degree A-V block.
• Simulate cardioversion with your manual, semi-automatic, or automatic defibrillator. Before the defibrillator discharges, activate the convert feature to select another rhythm to run immediately after the defib discharges.
• Waveforms for defibrillator training include: V. Fib, V.Tach (high rate), V.Tach (low rate), Torsade, A. Fib, A. Flutter, PSVT, Sinus Tach, Sinus rhythm, Sinus rhythm with PVCs, Asystole, and NSR.
• You can also generate realistic 12-lead ECG rhythms. Connect your ECG cable to the simulator's 10 ECG snaps. Independent chest lead and limb lead ECG signals create realistic 12 lead ECGs for each rhythm. Generate ST segment and T wave abnormalities, including: Anterior MI, Inferior MI, Antero-Septal ST elevation, Anterior ST depression, Lateral ST elevation, and Inferior ST elevation.
• LED indicators include: pacer pulse detection, defib discharge detection, and low battery. Battery saver feature powers-off simulator automatically when not in use. Warranty three years. 9-volt alkaline battery included.
• Alternate Part Number(s): 9851-000, 9851-001, 9851-002, 9851-003, 9851-007, 9851-008
