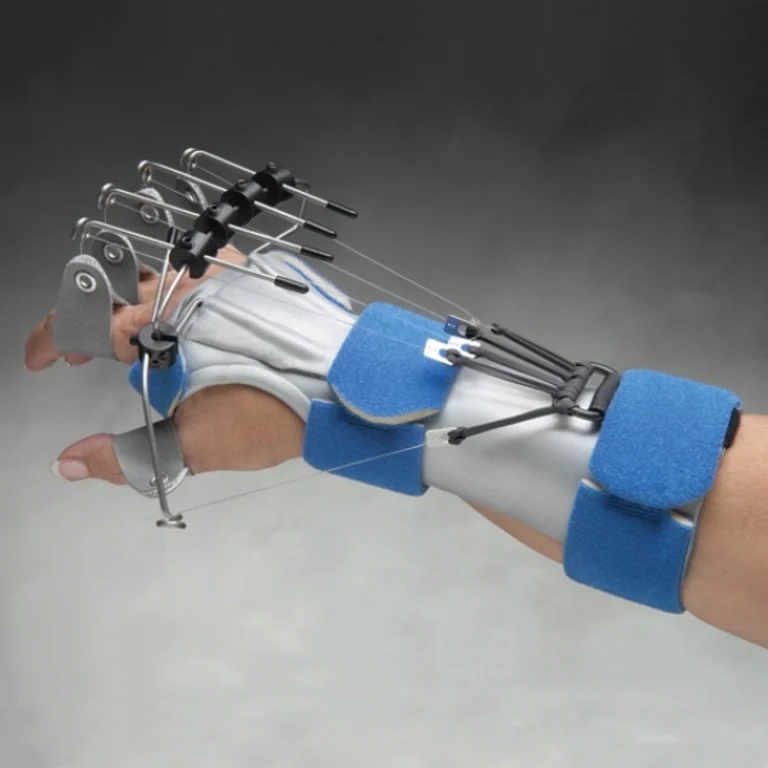

Digital Outrigger Kit by Blackhawk NC12780, FOR MORE INFO, see the BLUE BOX below
Adjustable components allow quick placement of individual digits into proper 90° line of pull.
Use for fabrication of dynamic splints.
Indications: Post radial nerve injuries and post MCP arthroplasty, fixed bony contractures, or unstable fracture conditions.
The preformed outrigger wire frame follows the arch of the hand and can be attached to the thermoplastic splint base (not included).
Two outrigger frames are included and can be fitted to any size hand.
The adjuster piece mounts onto the outrigger frame to hold the extension rod. Joint position is adjusted by rotating the adjuster piece and extension rod alignment.
Each extension rod can be shortened or lengthened to accommodate different fingers and joints.
Rod ends act as line guides so each respective finger loop holds the digit in correct alignment.
Thermoplastic and straps sold separately.
Additional replacement parts also are available. Latex free.
Kit includes:
(5) 6" (15cm) long extension rods
(5) Plastic tip protectors
(5) Adjuster pieces, each with three set screws
(5) Finger loops with attached monofilament line and line stoppers
(2) MP outrigger frames: one 5-1/2"(14cm) wide, one 4-3/4" (12cm) wide
(5) Sticky-back D-ring hookup straps
(1) Hex wrench
(10) Synthetic elastic bands (latex free)
Instructions included.
Item#: Nor-NC12780-KT
