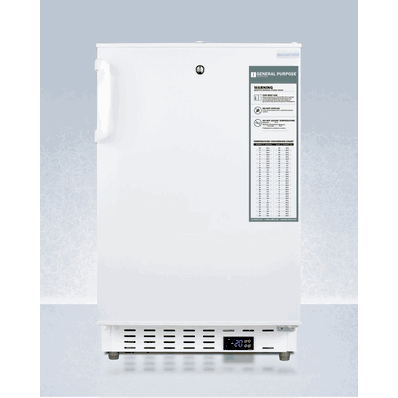

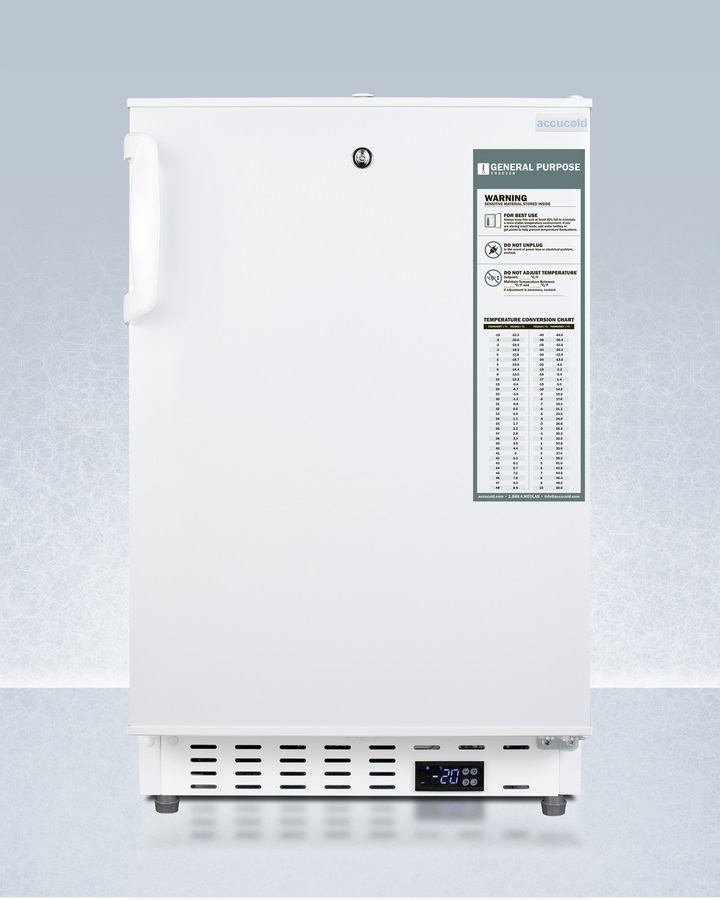

Built-In Vaccine All-Freezer, 20" Wide, 32.0" H x 19.75" W x 22.5" D, Slim-fitting ADA compliant undercounter freezer ideal for providing extra storage to small-spaced medical settings, sold as Each by Summit Medical ADA305AF

We only sell to businesses, clinics, government facilities, individuals may contact us by email - info@go3a.com

Item#: Sum-ADA305AF-EA

$981.83
Item(s) Total: $981.83
  • PRODUCT DETAILS
  • GOT QUESTIONS
  • RECENTLY VIEWED


Price shown is sold as Each

  • Product Details
  • Manufacturer # ADA305AF
    Manufacturer Summit Medical
    Application All-Freezer
    Dimensions 32.0" H x 19.75" W x 22.5" D (81cm H x 50cm W x 57cm D)
    Height of Cabinet 31.75" (81 cm)
    Height to Hinge Cap 32.0" (81 cm)
    Width 19.75" (50 cm)
    Width with Door Open 20.25" (51 cm)
    Depth 22.5" (57 cm)
    Depth with Handle 24.38" (62 cm)
    Depth with door at 90° 40.25" (102 cm)
    Capacity 2.47 cu.ft. (70 L)
    Defrost Type Manual
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 1.1
    Voltage/Frequency 115 V AC/60 Hz
    Weight 65.0 lbs. (29 kg)
    Door Swing RHD
    Reversible Yes
    Interior Height 23.75" (60 cm)
    Interior Width 14.5" (37 cm)
    Interior Depth 17.0" (43 cm)
    Shelf Type Drawers
    Shelf Qty 3
    Thermostat Type Digital
    Fan Type Exterior
    Refrigerant Type R600a
    Refrigerant Amount 1.34 oz.
    High Side PSI 180.0
    Low Side PSI 80.0
    Level Legs 2
    Interior Drawers Yes
    Drawers Qty 3
    Compressor Step Height 5.75" (15 cm)
    Compressor Step Width 14.5" (37 cm)
    Compressor Step Depth 6.0" (15 cm)
    Temperature Range -25° to -15°C
    LHD - Left hand door swing DL2B - Factory installed NIST calibrated digital data logger (DDL)
    Extra key CAS6 6" casters
    TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle
    AC Keypad - AC powered keypad lock KEYPAD - Battery-powered keypad door lock

    Features

    • ADA compliant design
      32" height allows easy installation under lower ADA compliant counters
    • Built-in capable
      Front-breathing design lets you make the best use of space by installing your appliance under the counter
    • Access port
      Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
    • Basket shelves
      Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
    • Reversible door
      User-reversible door swing for added flexibility to best accommodate your setting
    • Open door alarm
      Audible alarm will sound if the door is left ajar for over a minute
    • Manual defrost
      More temperature stability with an energy efficient manual defrost system
    • No internal fans
      Temperature remains more stable with a static cooling system
    • Magnetic door gasket
      Quality door gaskets ensure a tight seal for energy savings and improved performance
    • Fully finished white cabinet
      Allows the unit to be freestanding
    • CARB Compliant
      Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • -25°C capable
      Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
    • Factory-installed lock
      Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
    • Adjustable digital thermostat
      Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
    • 3" thick door
      Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
    • Temperature alarms
      User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
    • Hospital grade cord with 'green dot' plug
      Secure three-pronged cord for added unit safety
    • Flat door liner
      Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
    • Sealed back
      Space-saving design that offers easier cleanability
    • Matching all-refrigerator
      This unit can be paired with the ADA404REF all-refrigerator for a complete set
    • 100% CFC free
      Environmentally friendly design without ozone-damaging chemicals
    • Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.
    • The ADA305AF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.
    • Inside, the ADA305AF can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
    • Sized at just under 20" wide, the ADA305AF makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REF all-refrigerator.
